Tokyo Rig
There’s an old saying about there being a thousand ways to crack an egg. In the same way that there is no single way to accomplish a goal, there are many means and methods in catching bass.

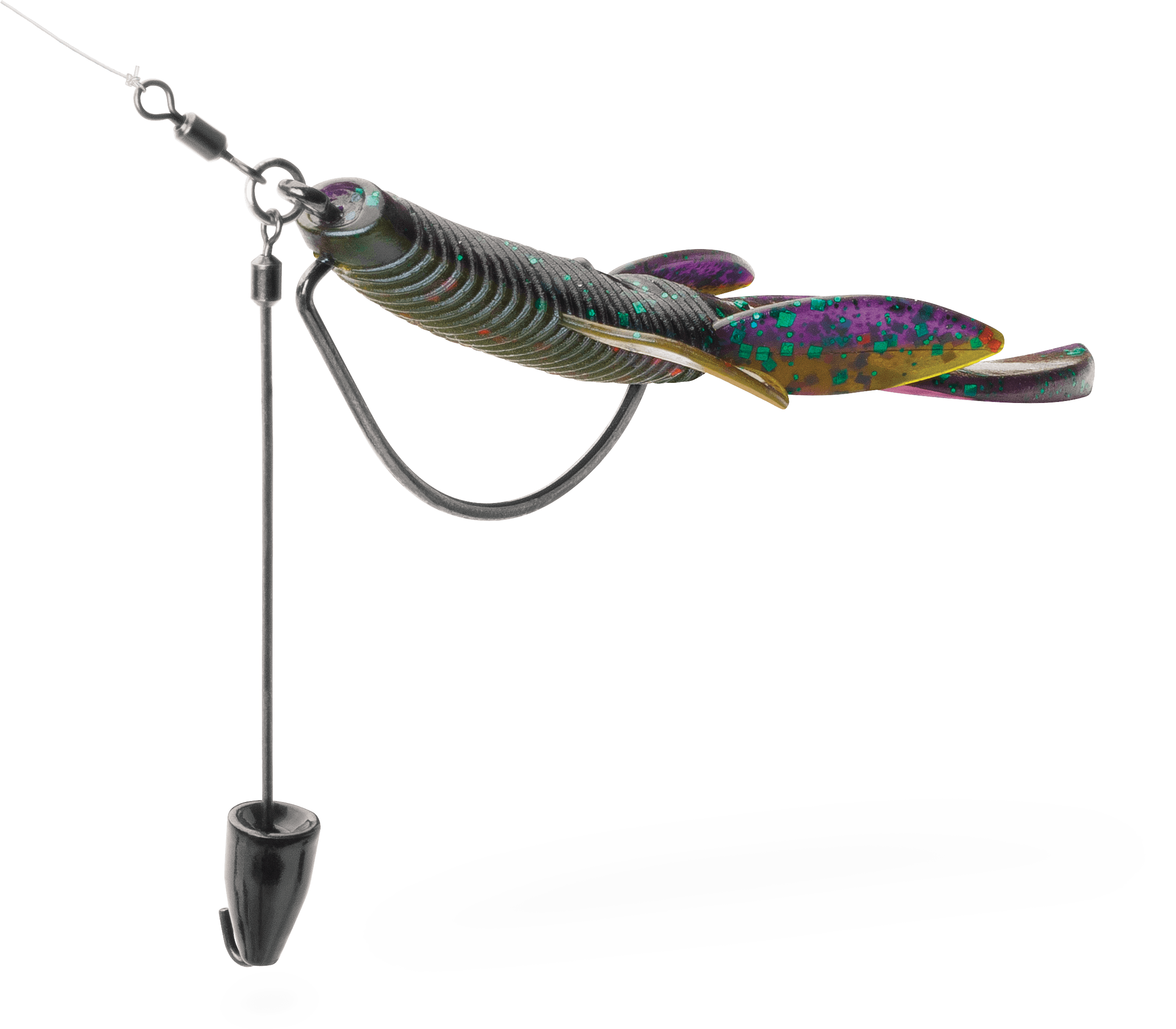

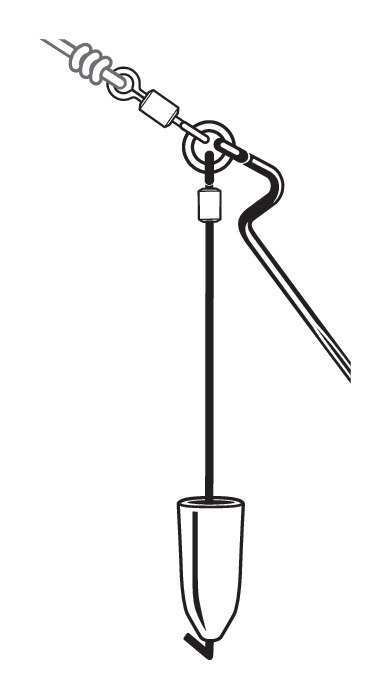

The Tokyo Rig is a specialized terminal tackle setup designed to fuse the heavy-cover penetration with the subtle off-the-bottom action (Rapala VMC)
Some means of cracking a largemouth or smallmouth bass are known but under utilized by anglers. The Tokyo Rig is a shining example of this and has been around in bass fishing for a while before formally stepping onto the scene around 2018.
The Tokyo rig originated in (you guessed it) Japan, as a means to trigger a strike in some of the most pressured conditions on earth. What came out originally as “punch shotting”, this method was originally tied in-boat using a very short leader, similar to a drop shot but only on heavier equipment, line, and a serious hook.
The Tokyo Rig was created and modeled after the jika rig, which is essentially a hook that connects to a split ring and weight. To give a little bit of space, leadered punch shots came about. Sometimes these rigs would tangle, break off, thus leading to the innovation of using a light wire as a dropper so the angler will have a long performing rig that slides clean and smoothly into cover.

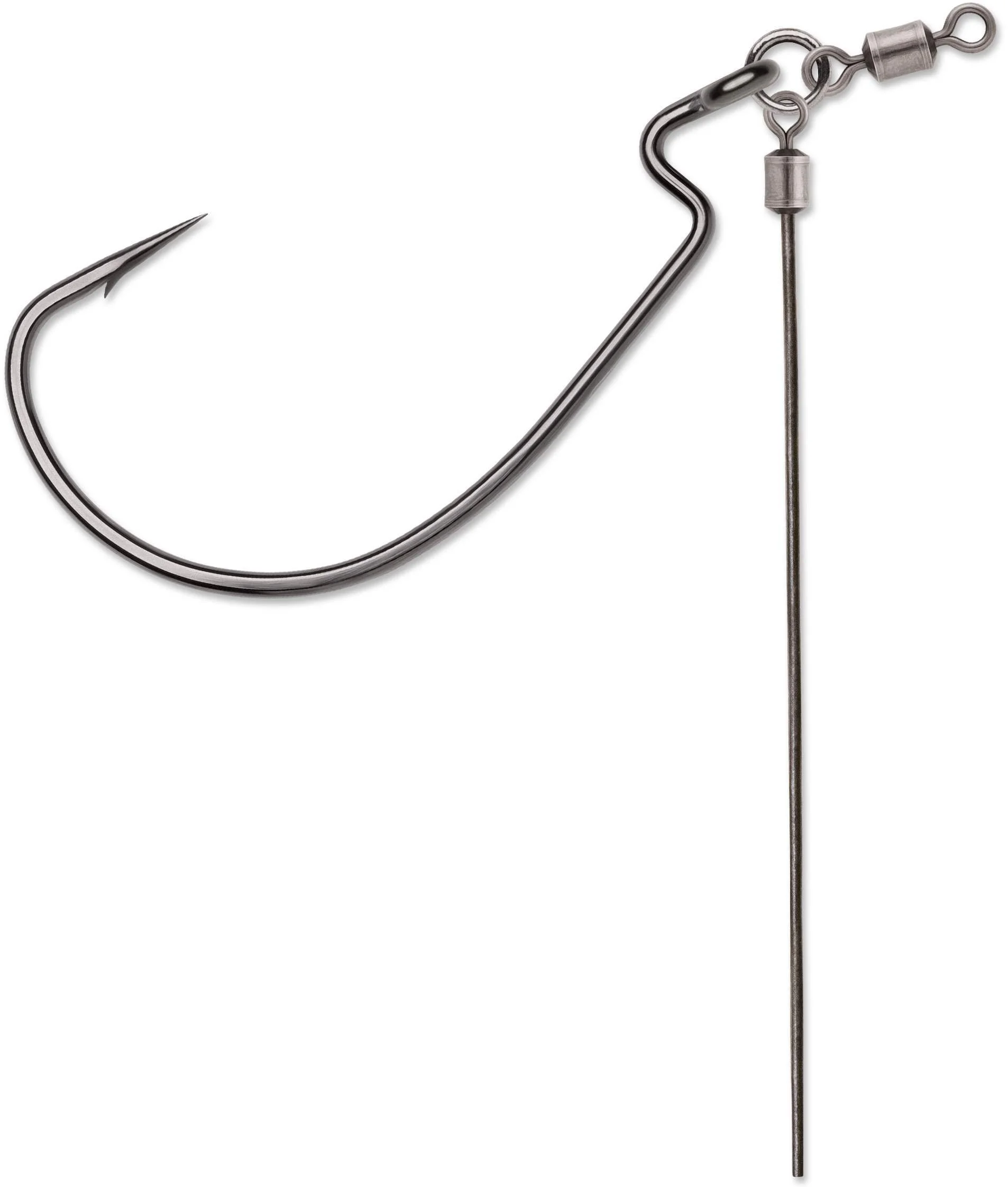

When you pick one of these up, you will notice a strong hook attached to a split ring that connects with a short wire i.e “dropper”. Depending on the depth and cover you may be fishing in, the wire is bendable so you can increase or decrease the weight.
From shallow docks and grass all the way out to deep offshore ledges, the Tokyo Rig offers peak versatility. It is more than an option to go where you would flip or pitch a jig at targets. While this option shines bright at punching mats and thick vegetation, you can cast it out far or even drag it behind the boat to cover water, similar to how you could with a jig or Texas rig.
John Crews is a professional angler on the Bassmaster Elite Series and President of Missile Baits. He is regarded as one of the most versatile anglers on tour and has a brilliant mind when it comes to bait design.
Photos Courtesy of Bass University and Bassmaster.
“The Tokyo rig is so cool because it’s like a power fishing drop shot. It is incredibly versatile because you can have it fitted with any kind of bait. It doesn’t matter if it is on heavy line, because the weight is on the terminal side, the action of the bait is not interfered, making it fish like a finesse presentation.”

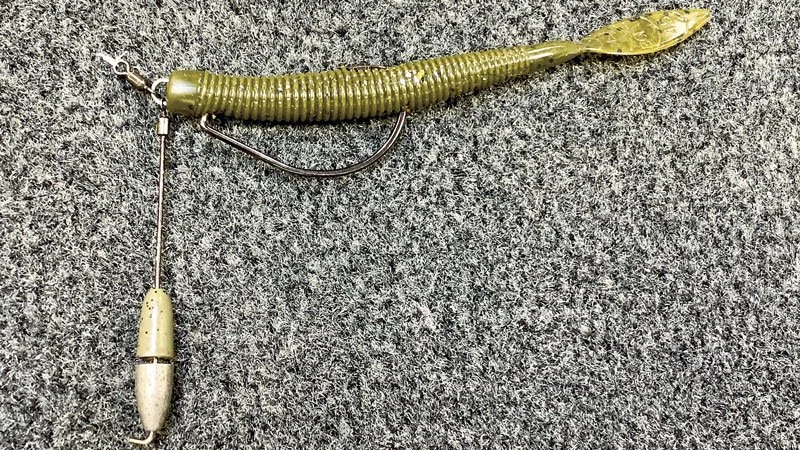

What the presentation of the Tokyo Rig does best is positioning the bait up off of the bottom in situations where it may be challenging to do so. Unlike other rigging options, the bait of your choosing will be free-flowing. Additionally, this makes it a fantastic choice when the bottom contents are soft. With the bait being separate from the weight, the weight will sink into the muck and soft bottom while the bait appears to be on top of hovering. Due to the hook being connect by a split ring instead of directly to a weight, the bait will have a wider range of motion. Small twitches of the rod tip or shaking it on a slack line will make the bait dance in place to entice a strike.

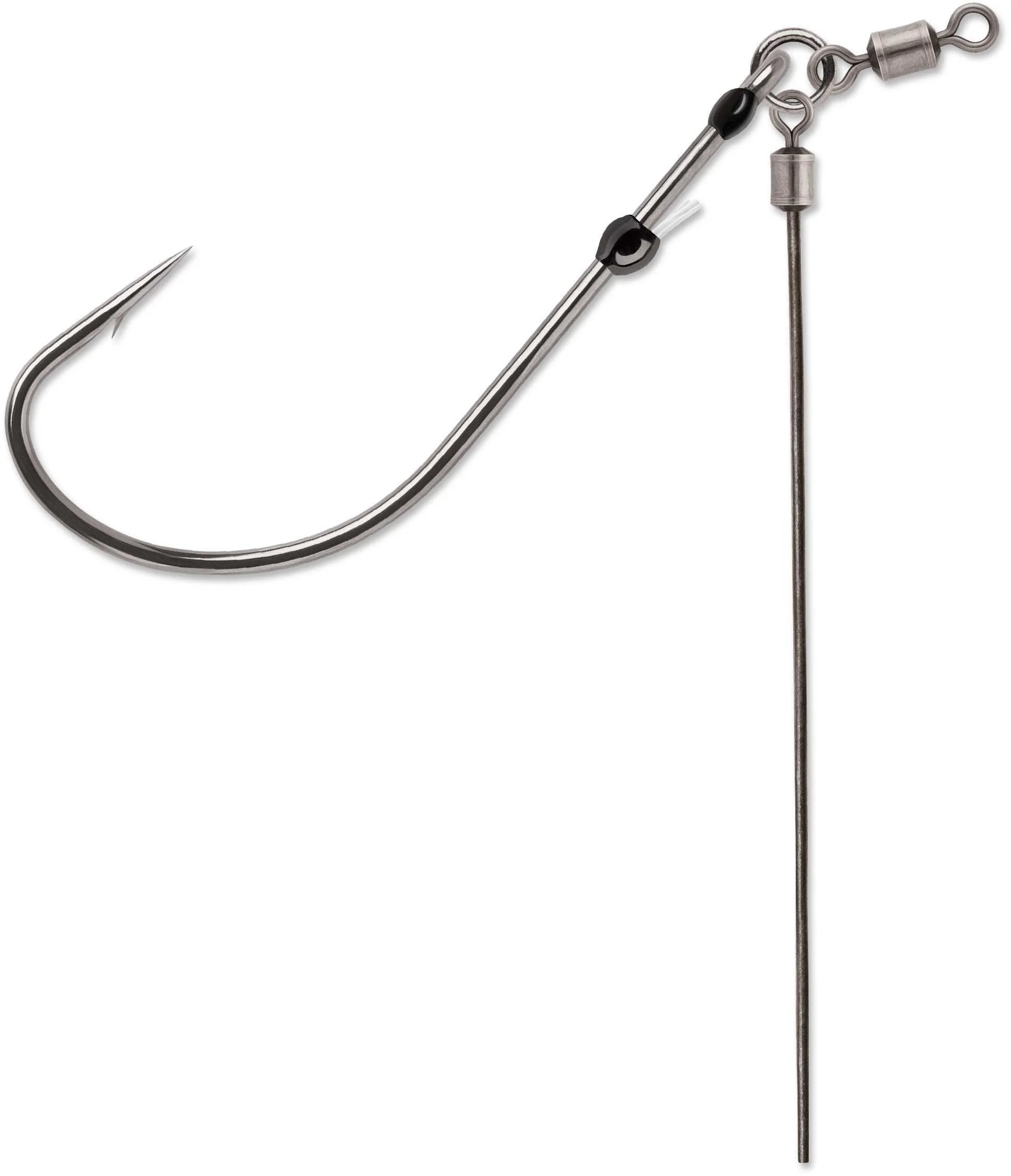

Above: Depending on the cover you are fishing or your bait of choice, hooks rated from heavy flippin capabilities to a lighter finesse performance all have their time and place. (Rapala VMC)
Originally designed with fishing vegetation, like grass and mats in mind, the Tokyo rig allows presentations to get through heavy cover with a lighter weight because it leads with the mass of the weight. Compared to a regular punching set up, a 1oz weight will come down in a thunderous manner crashing through, leading the nose of the bait downward and into the bottom, sometimes burying and hiding the bait from the fish.
Photos courtesy of Bassmaster & John Crews
“I think that the ploom of silt and debris created when the bottom contact is made draws in curious fish and they have a hard time resisting the temptation of a subtle moving bait. ”
Benefits of a direct hookset: Anglers who are believers will agree and tell you how successful they are when it comes to the hookup to landing ratio. When a fish bites, you are pulling directly against the hook rather than fighting the resistance of a heavy weight, leading to excellent hookup ratios.
In 2018, VMC manufactured the Tokyo Rigs for the masses to purchase. Before this time, anglers and tackle crafters were making them themselves or special ordering online. VMC holds the trademark on "Tokyo Rig" in North America, so other tackle companies produce the exact same wire-dropper build under alternate names. Today, they are sold across the market from manufacturers like Gamakatsu as the Power Drop, Eagle Claw Lazer Sharp TKO Punch Rig Kit, and the Harmony Fishing Punch Shot Kit.

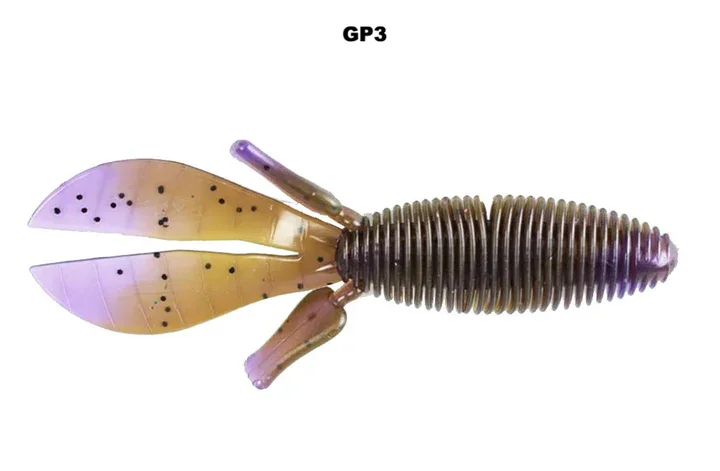

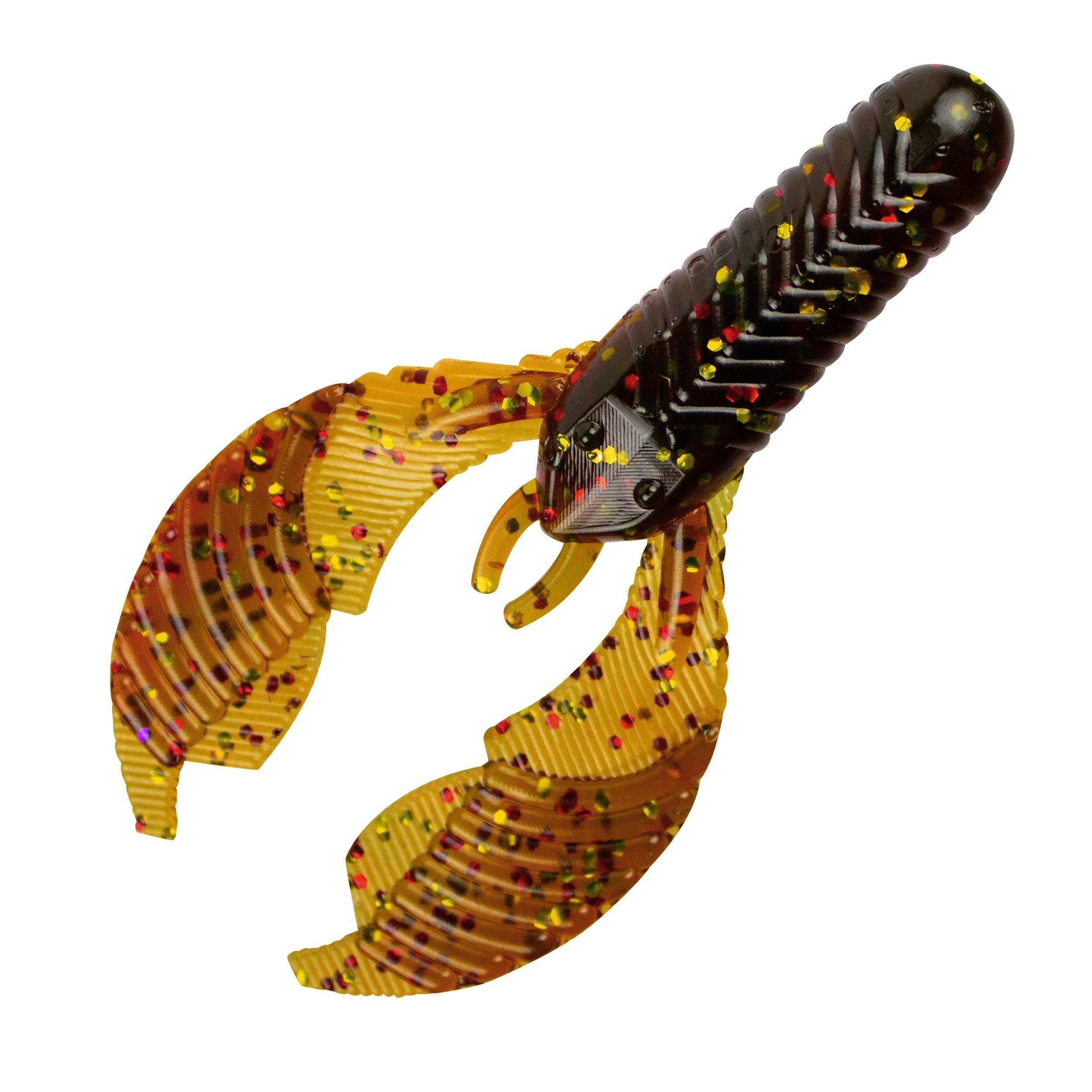

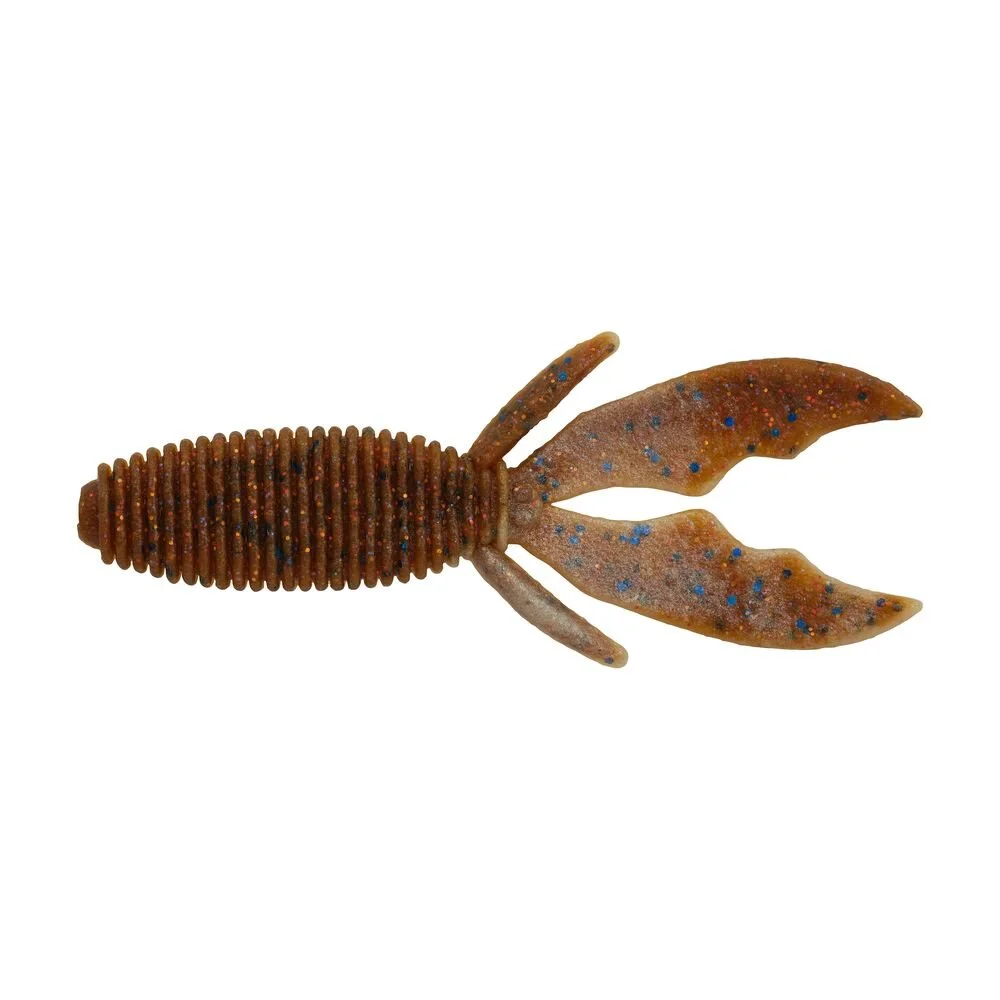

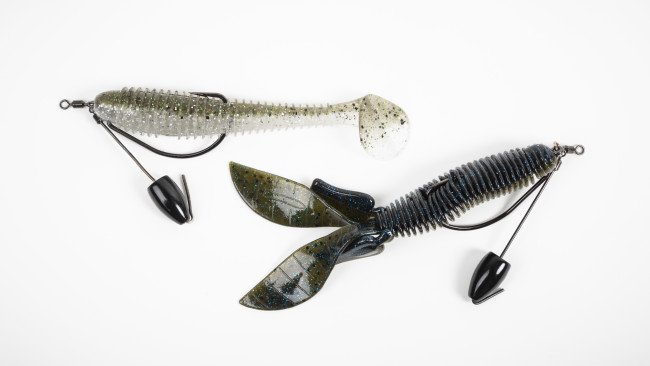

(R-L) Keitech Swimbait and Missile Baits D Bomb; Missile Baits: Quiver Worm, D Bomb, Baby D Stroyer; Berkley Maxscent Creature Hawg; YUM Craw Chunk; Z-Man Hella CrawZ.
Not only can they be used anywhere- but they are also not limited to a single bait style or hook profile. Creature baits, craws, worms, swimbaits- they all have a place in this presentation. Depending on cover or your bait, hooks rated from heavy flippin capabilities to a lighter finesse performance all have their time and place.
When heavy boat pressure locks down local waters, the Tokyo rig provides the precise structural separation and subtle horizontal drift needed to outsmart hyper-vigilant bass. By isolating your soft plastic on a free-swinging ring above a wire-dropped weight, it delivers an uninhibited, zero-drag presentation that triggers cautious strikes when standard Texas rigs get completely ignored.

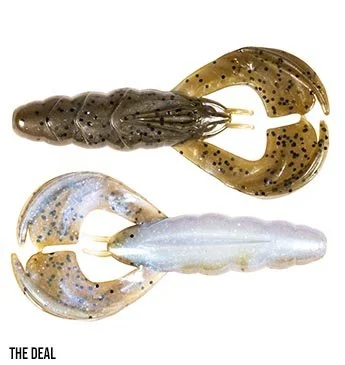

Floating soft plastics—like the ElaZtech-backed Z-Man Hella Crawz—provide critical vertical lift, suspending your hook to create a perfectly neutral, weightless prey profile. This elevated presentation keeps the claws floating in a natural defensive posture, triggering strikes from wary bass without sinking into bottom debris.

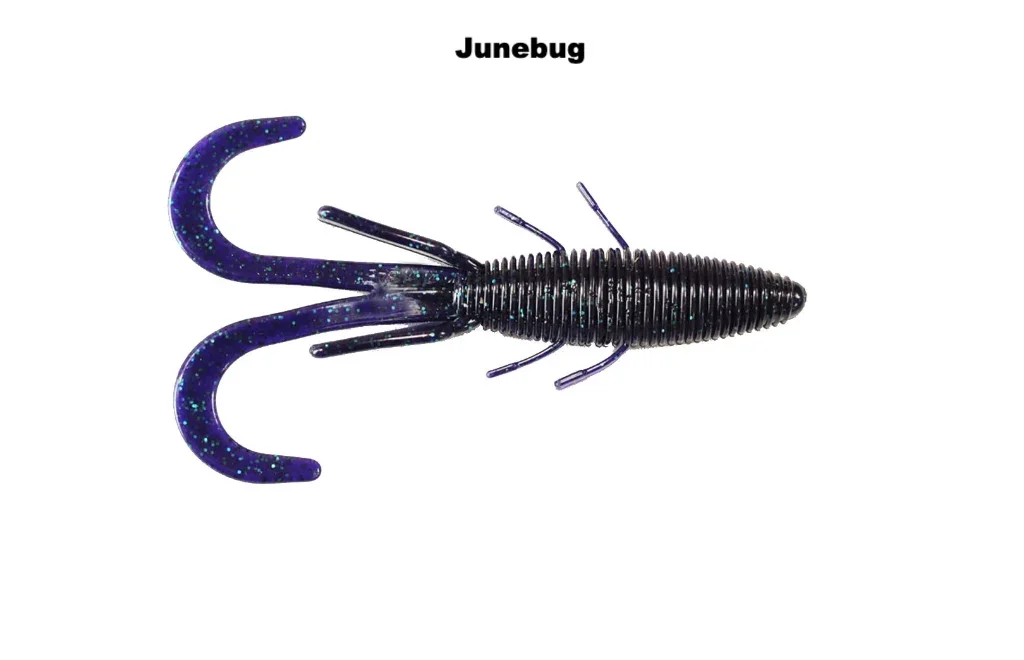

"I pitch it and flip it around rocks and heavy grass because it comes through cover so easily. I love using the Missile Baits Baby Destroyer because it has great action when it is being moved really slow."
Missile Baits is based in Salem, Virginia, founded and owned by Bassmaster Elite Series professional angler, John Crews. They specialize in high-performance soft plastic lures, most notably popular designs like the D Bomb and Ned Bomb, as well as specialized bass jigs. Every bait is engineered specifically to meet the rigorous demands of top-level tournament anglers. Next time you need baits, remember to support American-made tackle and visit MissileBaits.Store.
A special word of appreciation is expressed for John Crews for sharing his knowledge and insight for this piece, and Andrew Woodman for sharing photos. Thank you!
